10bbl Beer Brewing Equipment Manufacturer/Beer Brewery System/Beer Tanks

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Jinan Rainbow Machinery Co., Ltd
[China]

Address
88 Huizhan East Road, High-Tech Zone Jinan Shandong
Phone
86-531-66592692
Contact name
Sophie Zhu

Quick Information

  • Brand Name: RAINBOW
  • Place of Origin: China
  • Model Number : RM1200L
  • Processing Types : Alcohol
  • Certificate : CE, ISO9001
  • Agitator : for mash/lauter tun
  • Heating method : electric, steam, gas fire
  • Welding : 100% TIG welding
  • Polishing : 0.4-0.6 μm

Description

COMPANY PROFILE:

We, Jinan Rainbow Machinery Co., Ltd  are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-10000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.



We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.





 MAIN CONFIGURATIONS:

 This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquor tank), please check the details in the following chart.

Optional:  1- mash/brew kettle, lauter tun/whirlpool

                  2- mash/brew kettle, lauter tun, whirlpool

                  3- mash tun, lauter tun, brew kettle/whirlpool

                  4- mash tun, lauter tun, brew kettle, whirlpool

This following chart is the 1200L brewing system configuration for your reference.

Items

Equipment

Specification

Quantity

(PCS)

Malt miller

Malt miller

300kg/hour

1

Brew house

Mash tun/lautering tun

1200L

1

Brew kettle/whirlpool

1200L

1

Hot liquor tank

1200L

1

Plate heat exchanger

12 m2

1

Pump

3 m³/h

1

Wort oxygenator



1

Working platform



1

Fermentation

Fermenter

1200L

6

Yeast adding tank

30L

1

Cooling unit

Glycol water tank

2000L

1

Cooling compressor

5hp

2

Water pump

3 m³/h

1

CIP unit

Alkali tank

100L

1

Sterilization tank

100L

1

Pump

3 m³/h

1

Control unit

Siemens PLC controlling system

1

Filter system

Kieselguhr filter machine

300L/H

1

Bright beer tank

1200L

1

Spare parts

All necessary spare parts such as pipes, valves, gauges and clamps…etc.



Heating source: electricity, baine-marie heating, gas fired or steam heating

Material: stainless steel 304 or copper





Main features of brewhouse and fermentation:

Brewhouse system:

1) - inner wall stainless steel 304, 3mm;

    - surface wall stainless steel 304, 2mm

2) - Dome top, top manway with glass

    - Side manway, cone bottom 160 degree

3) - insulation: polyurethane/rockwool 100mm;

     - with inside CIP washing ball

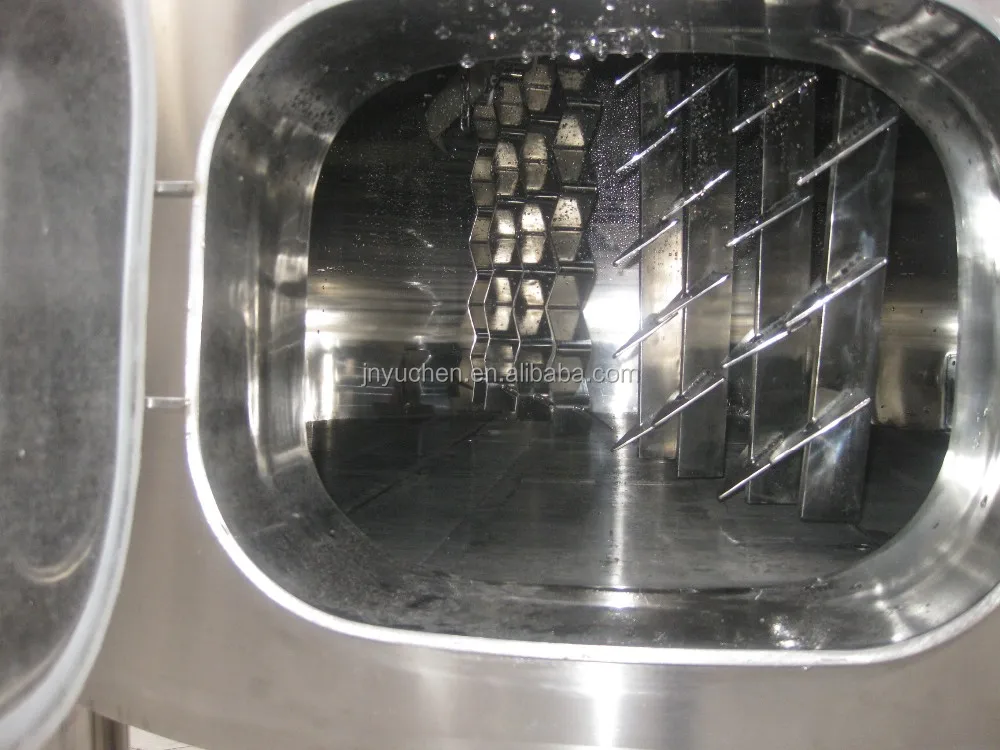

     - raking agitator

     - removable false bottom

    - sparging arm, sight glass

      -Tangential inlet for whirlpool

      -Thermowell for temperature sensor and thermometer

      -100% TIG welding with pure argon gas shield

      -Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner

Sample:

10bbl Jinan beer brewing equipment manufacturer/beer fermentation tank/beer brewery system in Shandong

Details:

10bbl Jinan beer brewing equipment manufacturer/beer fermentation tank/beer brewery system in Shandong

Fermentation system:

1) - Inner wall stainless steel 304, 3mm;

      - surface wall stainless steel 304, 2mm

 2) -Dome top, conical bottom,

     - Top mounted manway

3) -Insulation: polyurethane 100mm

4) -Glycol cooling jackets on both cylinder and cone

5) - Inside 360 degree rotating CIP washing ball;

     - CIP arm

     - Pressure gauge

     - relief&vacuum valve on top

      - sample valve

     - rotating racking arm on cone

     - thermometer

     -carbonation stone (optional)

     - dry hops port on top

 6)  -100% TIG welding with pure argon gas shield

      -Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner

      -Testing pressure: 3 bar

      -working pressure: 1.5-2 bar

Sample:

10bbl Jinan beer brewing equipment manufacturer/beer fermentation tank/beer brewery system in Shandong

Details:

10bbl Jinan beer brewing equipment manufacturer/beer fermentation tank/beer brewery system in Shandong

Spare parts:

-Pipe line for brewhouse

-Butterfly valves

-Sight glass

-Measuring cylinder

-Saccharimeter, 0-10&10-20

-Spent grains harrow

-Cooling solenoid valve

-Safety valve for fermenters

-Pressure gauge

-Thermometer

-Pipeline for cooling

-Temperaturesensor, PT100



For Your Reference:

1. For electrical elements part, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB....etc. And we also do UL standard.



 2. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L, 8000L...

   (1bbl, 2bbl, 5bbl, 10bbl....) per patch for your choice.

      It can be customized, such as the capacity(dimension can be customized), material(stainless steel 304 or copper), voltage(like 380v, 50Hz, 3phases), heating source(electric, steam or gas fired heating), etc.



 3. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,

     to meet different taste of customers.



 OPTIONAL:

 Beer bottling line: bottle washing machine, filling machine, capping machine,

 pasteurization tank, labelling machine.

 Kegs washer and filler.

 Beer kegs(10L,20L,30L,50L...).

 Steam boiler.





10bbl Jinan beer brewing equipment manufacturer/beer fermentation tank/beer brewery system in Shandong

10bbl Jinan beer brewing equipment manufacturer/beer fermentation tank/beer brewery system in Shandong

10bbl Jinan beer brewing equipment manufacturer/beer fermentation tank/beer brewery system in Shandong

10bbl Jinan beer brewing equipment manufacturer/beer fermentation tank/beer brewery system in Shandong

10bbl Jinan beer brewing equipment manufacturer/beer fermentation tank/beer brewery system in Shandong

10bbl Jinan beer brewing equipment manufacturer/beer fermentation tank/beer brewery system in Shandong



All the necessary spare parts:

Welding&polishing:

10bbl Jinan beer brewing equipment manufacturer/beer fermentation tank/beer brewery system in Shandong

10bbl Jinan beer brewing equipment manufacturer/beer fermentation tank/beer brewery system in Shandong


Price

  • Price Condition : FOB
  • Price : USD56800 / 1
  • Delivery Port : Qingdao

Packaging & Delivery

  • Delivery Lead Time : 40-45 working days after confirm the order
  • Minimum Order : 1 set
  • Supply Ability : 20 sets per month
