1000L Microbrewery System/Turnkey Beer Brewery Equipment

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Jinan Rainbow Machinery Co., Ltd
[China]

Address
88 Huizhan East Road, High-Tech Zone Jinan Shandong
Phone
86-531-66592692
Contact name
Sophie Zhu

Quick Information

  • Brand Name: RAINBOW
  • Place of Origin: China
  • Model Number : RM1000L
  • Processing Types : Alcohol
  • Certificate : CE, ISO9001
  • Fermenting type : ale or lager
  • Insulation : PU100mm
  • Polishing : 0.4-0.6μm
  • Welding : 100% TIG welding

Description

                             1000L Beer brewery equipment

Company Profile:
We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-10000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.

We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.



MAIN CONFIGURATIONS:

This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquor tank), please check the details in the following chart.

Optional:  1- mash/brew kettle, lauter tun/whirlpool

           2-mash/brew kettle, lauter tun, whirlpool

           3- mash tun, lauter tun, brew kettle/whirlpool

           4- mash tun, lauter tun, brew kettle, whirlpool

This is the 1000L brewing system configuration for your reference.

Items

Equipment

Specification

Quantity

(PCS)

Malt miller

Malt miller

300kg/hour

1

Brew house

Mash tun/lautering tun

1000L

1

Brew kettle/whirlpool

1000L

1

Hot liquid tank

1000L

1

Plate heat exchanger

10 m2

1

Pump

3 m³/h

1

Oxygenator



1

Working platform



1

Fermentation

Fermenter

1000L

6

Yeast adding tank

30L

1

Cooling unit

Glycol water tank

2000L

1

Cooling compressor

5hp

2

Water pump

3 m³/h

1

CIP unit

Alkali tank

100L

1

Sterilization tank

100L

1

Pump

3 m³/h

1

Control unit

Siemens PLC controlling system

1

Filter system

Kieselguhr filter machine

200L/H

1

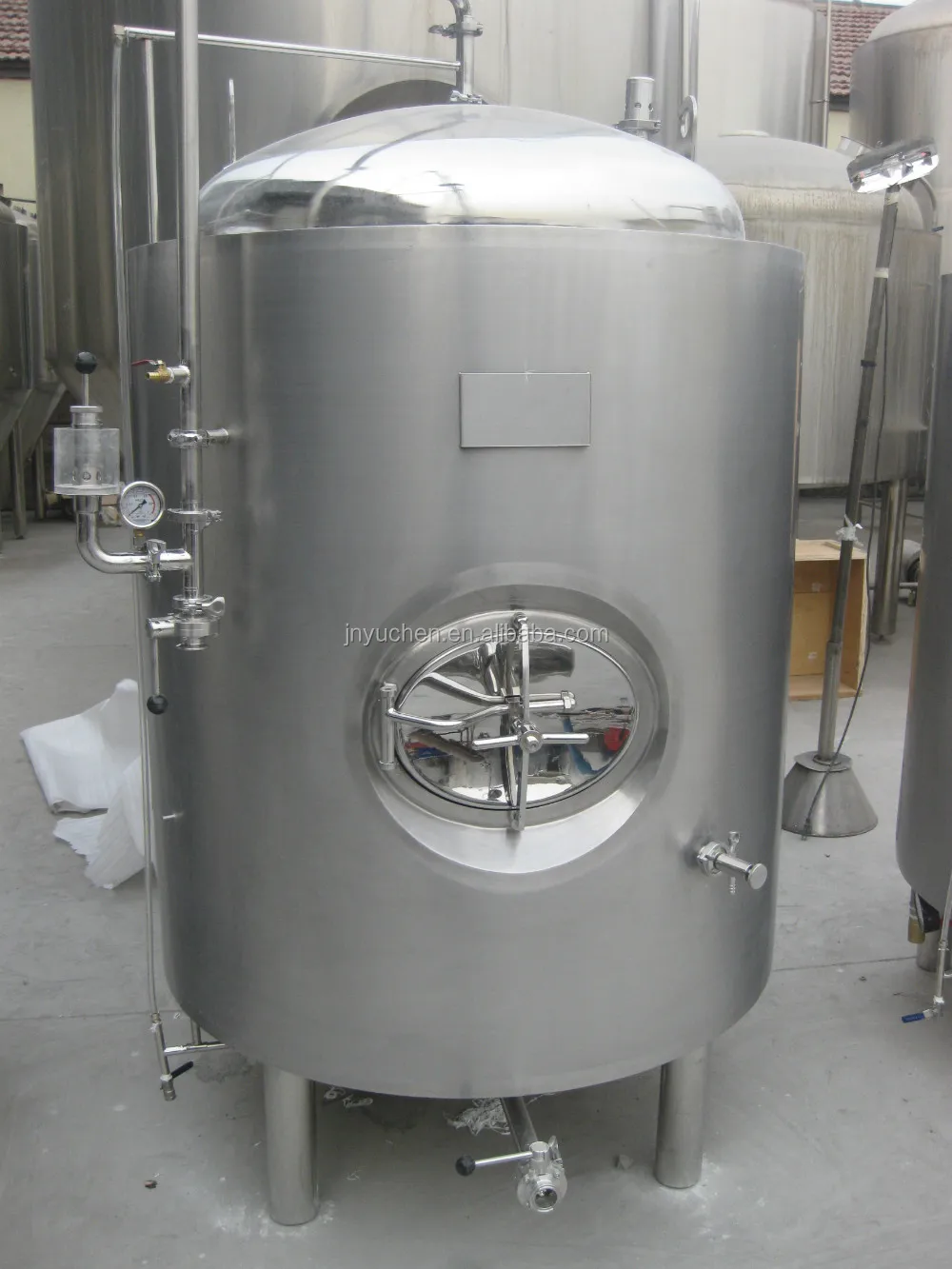

Bright beer tank

1000L

1

Spare parts

All necessary spare parts such as pipes, valves, gauges and clamps…etc.

Heating source: electricity, gas fired or steam heating

Material: stainless steel 304 or copper


Main features of brewhouse and fermentation:

Brewhouse system:

1) - Interior wall stainless steel 304, 3mm;

    - exterior wall stainless steel 304 or copper, 2mm

2) - Dome top, top manway with glass

    - Side manway, cone bottom 160 degree

3) - insulation: polyurethane/rockwool 100mm;

     - with inside CIP washing ball

     - raking agitator

     - removable false bottom

    - sparging arm, sight glass

      -Tangential inlet for whirlpool

      -Thermowell for temperature sensor and thermometer....

Fermentation system:

 1) - Interior wall stainless steel 304, 3mm;

       - exterior wall stainless steel 304, 2mm

 2) - Dome top, conical bottom,

    - Top mounted manway

3)  - Insulation: polyurethane 100mm

4) - Glycol cooling jackets on both cylinder and cone

 5) - Inside 360 degree rotating CIP washing ball;

    - CIP arm

    - Pressure gauge

    - relief&vacuum valve on top

    - sample valve

    - rotating racking arm

    - thermometer

    - dry hops port on top

     -carbonation stone (optional)

 6) - Testing pressure: 3 bar

    - working pressure: 1.5-2 bar

Welding&Polishing:

  -100% TIG welding with pure argon gas shield

  -Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner

1000L Craft beer brewery equipment, Germany beer brewing equipment, conical fermenter

Main Spare Parts:

Pipe line for brewhouse

SUS304

Measuring cylinder

SUS304

Butterfly valve

Ø32

Butterfly valve

Ø38

Sight glass

Ø32

Saccharimeter

0-10; 10-20

Spent grains harrow

SUS 304

Fermenter’s safety valve

Ø51

Fermenter’s Sample valve

ø32

Pressure gauge

0-0.6Mpa

Pipe line for cooling unit

SUS 304

Cooling water solenoid valve

ø32

Cooling pipe insulation



Expansion valve for cooling compressor



Control box cable



Signal wire



Electric relay

Omron

Temperature sensor

PT100



For Your Reference:

1. For electrical elements part, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB....etc. And we also do UL standard.

2. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L, 8000L...(1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.

     It can be customized, such as the capacity(dimensions can be adjustable), material(stainless steel 304 or red copper), voltage(like 380v, 50Hz, 3phases), heating source(electric, steam or gas fired heating), etc.

3. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc, to meet different taste of customers.


OPTIONAL:

 Beer bottling line: bottle washing machine, filling machine, capping  machine,pasteurization tank, labelling machine.

 Kegs washer and filler.

 Beer kegs(10L,20L,30L,50L...).

 Steam boiler.

1000L Craft beer brewery equipment, Germany beer brewing equipment, conical fermenter

1000L Craft beer brewery equipment, Germany beer brewing equipment, conical fermenter

1000L Craft beer brewery equipment, Germany beer brewing equipment, conical fermenter

1000L Craft beer brewery equipment, Germany beer brewing equipment, conical fermenter

1000L Craft beer brewery equipment, Germany beer brewing equipment, conical fermenter

1000L Craft beer brewery equipment, Germany beer brewing equipment, conical fermenter

1000L Craft beer brewery equipment, Germany beer brewing equipment, conical fermenter

1000L Craft beer brewery equipment, Germany beer brewing equipment, conical fermenter

All the necessary spare parts like:

1000L Craft beer brewery equipment, Germany beer brewing equipment, conical fermenter

1000L Craft beer brewery equipment, Germany beer brewing equipment, conical fermenter

1000L Craft beer brewery equipment, Germany beer brewing equipment, conical fermenter

1000L Craft beer brewery equipment, Germany beer brewing equipment, conical fermenter


Price

  • Price Condition : FOB
  • Price : USD49800 / 1
  • Delivery Port : Qingdao

Packaging & Delivery

  • Delivery Lead Time : 40-45 working days after the deposit
  • Minimum Order : 1 piece
  • Supply Ability : 20 sets per month
